Alpha-Tetra-Tension system

The Alpha-Tetra-tensioning system is a four-sided spring-loaded tensioning system for SMD-stencils with a special perforation. The system is suitable for the Vector-MountTM- and Vector-260-perforation as well. The Alpha-Tetra-tensioning system is in many metal sheet thicknesses available.

Benefits:

Matertial thicknesses in µm

80, 90, 100, 120, 130, 140, 150,

180, 200, 250, 300, 400

Alpha Tetra

Alpha Tetra

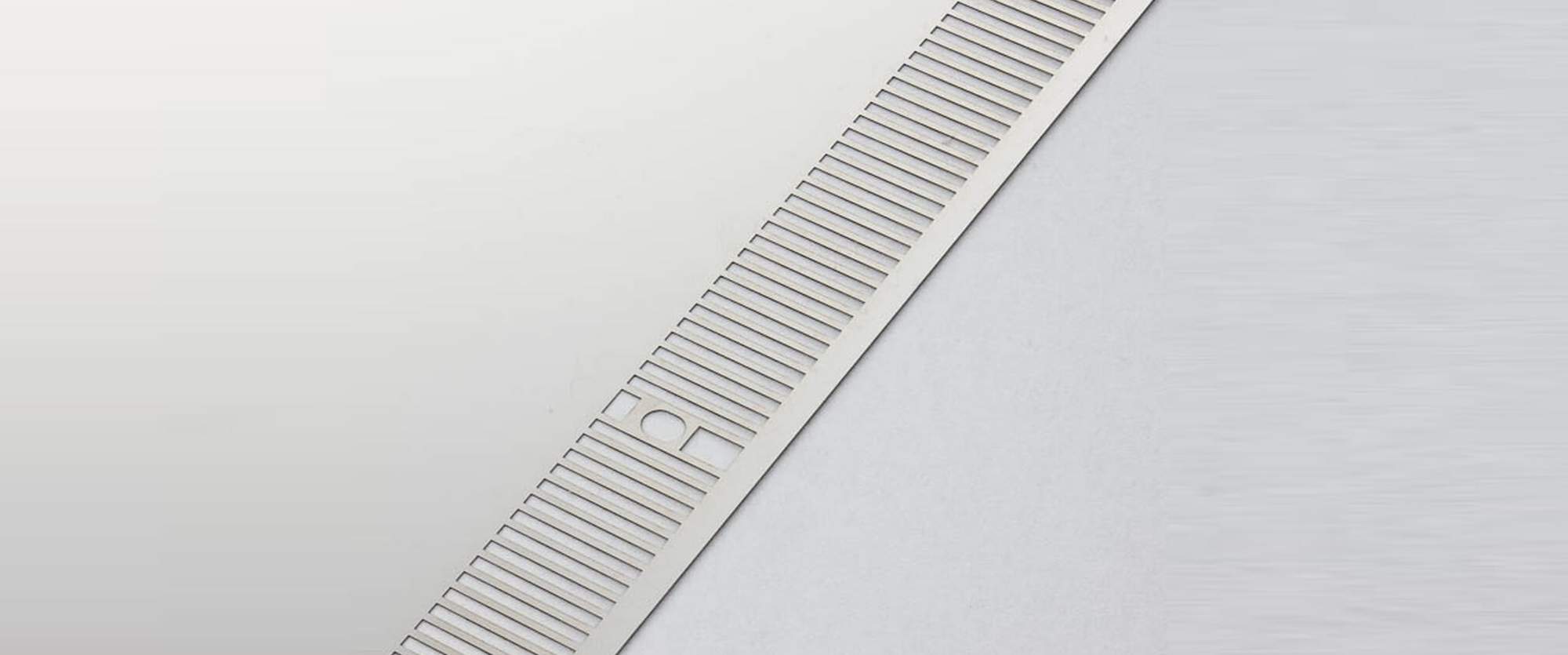

stencil with a perforation for Alpha Tetra tensioning sysems

Alpha Tetra

Alpha Tetra

corner of a stencil with a perforation for Alpha Tetra tensioning sysems

Alpha Tetra

Alpha Tetra

stencil for Alpha Tetra tensiong system

Alpha Tetra

Alpha Tetra

detailed view of a stencil.

Which standard sizes are available?

The standard sizes are

430 x 430 mm, (17“ x 17“)outside dimensions

584 x 584 mm, (23“ x 23“) outside dimensions

584 x 736 mm, (23“ x 29“) Expanded with adapter set to outside dimensions of 736 x 736mm (29“ x 29“)

Which metal sheet material thicknesses are available?

We offer material thicknesses (µm): 80, 90, 100, 120, 130, 140, 150, 180, 200, 250, 300, 400


What is the delivery time for an Alpha-Tetra stencil?

The standard delivery time is: 3 working days for a SMD-stencil or step stencil in an Alpha-Tetra-Tensioning system. Express deliveries are possible in a 6- or 24-hours service.
