ZelFlex Z4P tension system

The tension system ZelFlex Z4P is a pneumatic workable system with patent protected compressor unit. It is available in two standard sizes and is deliverable in many material thicknesses.

Benefits

material thicknesses in µm

80, 90, 100, 120, 130, 140, 150,

180, 200, 250, 300, 400

Zelflex Z4

Zelflex Z4

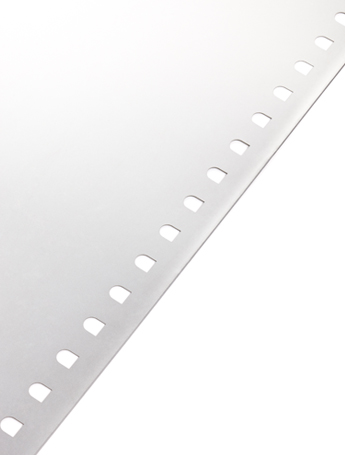

stencil with typical perforation

Zelflex Z4

Zelflex Z4

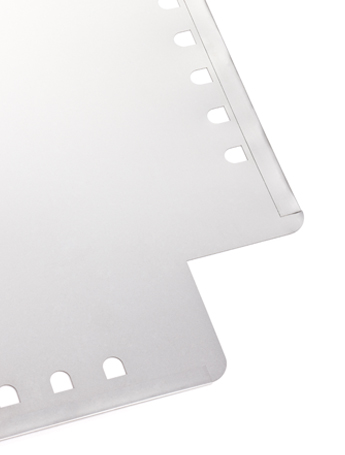

detailed view of the perforation

Zelflex Z4

Zelflex Z4

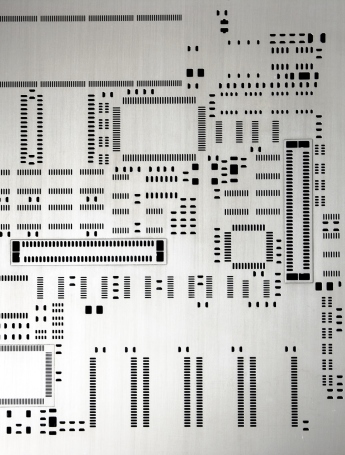

layout of a SMD-stencil

Zelflex Z4

Zelflex Z4

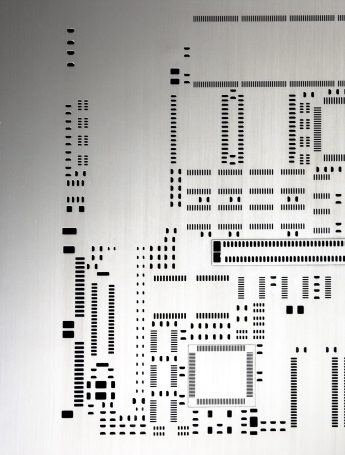

layout of a SMD-stencil with step-up application

What standard sizes of stencils are deliverable?

The standard sizes are

584 x 584 mm, (23“ x 23“) Outside measurements
736 x 736 mm, (29“ x 29“) Outside measurements

Which metal sheet thicknesses are available for ZelFlex Z4P stencils?

We can offer stencils in thicknesses of: 80, 90, 100, 120, 130, 140, 150, 180, 200, 250, 300, 400

What are the delivery times for stencils in ZelFlex Z4P tensioning systems?

The standard delivery times (ex works) are 3 working days for SMD-stencils or step stencils. Express deliveries are possible in 6-hours and 24-hours services.
