LJ 745 Tensioning System

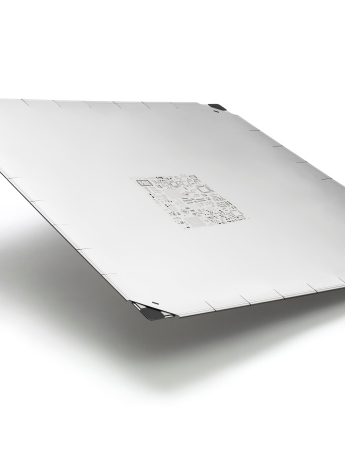

LaserJob proudly introduces their new generation LJ 745 Tensioning System. The LJ 745 Tensioning System is a frameless stencil tensioning system with significant advantages over conventional stencil technologies.

It is the only tensioning system on the market which offers the same high and uniform tension, >40N/cm, as traditional “high-tension” stainless steel mesh-mounted stencils.

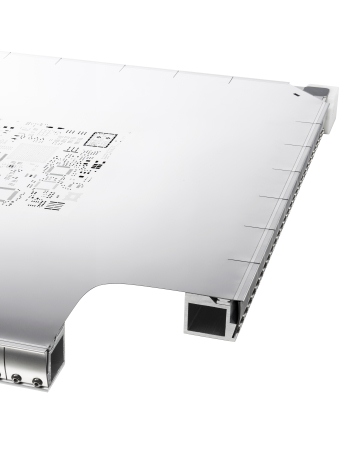

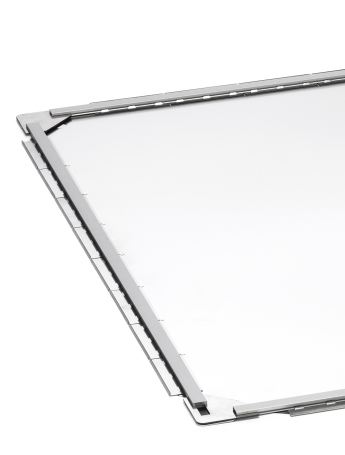

The LJ 745 Tensioning System is simple to use and doesn’t require compressed air. The tensioning frame is available in both 29” x 29” and 23” x 23” sizes and can accommodate all of the stencil foil thicknesses utilized in fixed frames.

Benefits

high and uniform tension > 40N/cm
stable handling
stencil foil thickness below 100 micron possible
29” x 29” and 23” x 23” available

Andreas Axmann

Contact us

+49 8141 52778-21

How do we store stencils of the tensioning system LJ 745?How do we store stencils of the tensioning system LJ 745? Storage cabinetHow do we store stencils of the tensioning system LJ 745?

LJ 745 Tensioning System

How do we store stencils of the tensioning system LJ 745?

We offer a storage cabinet for stencils in tensioning system LJ 745.
On a base of 0,7m² the storage cabinet takes up 100 stencils. Due to the sectional strips welded on the stainless steel sheets, the stencils for the tensioning system LJ 745 can be stored without additional tools. No carton necessary – ecofriendly!

Advantages:

Minimum floor space is required
Foils are compactly stored and neatly arranged
Safe storage, suitable for ESD

How can the stencil be inspected for cleanliness?

An illumination unit can be optionally integrated in the tensioning system, to facilitate the inspection of the stencil or the apertures. The illumination unit consists of maintenance free

LED`s with especially high numbers of lumens, to inspect very small apertures in an easy way.

Which metal sheet thicknesses do we offer for stencils in our tensioning system?

Available material thicknesses

Stainless steel sheets (μm):
30, 40, 50, 60, 70, 80, 90, 100, 120, 130, 140,150, 180, 200, 250, 300, 400 (mils): 1.0; 2.0; 3.0; 3.5; 4.0; 5.0; 6.9; 7.0; 8.0; 10.0; 12.0; 16.0

How do we distinguish stencils for RoHS directive?

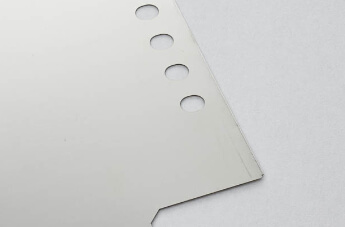

Green corner tabs can be employed for compliance with RoHS directives and unique product identification.

LJ 745 Tensioning System
