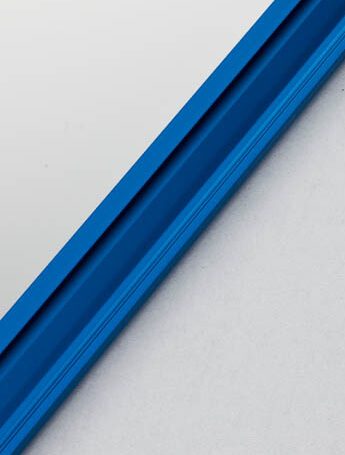

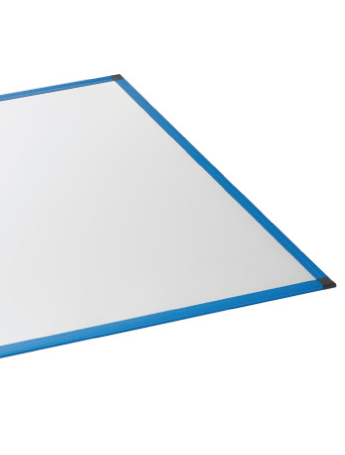

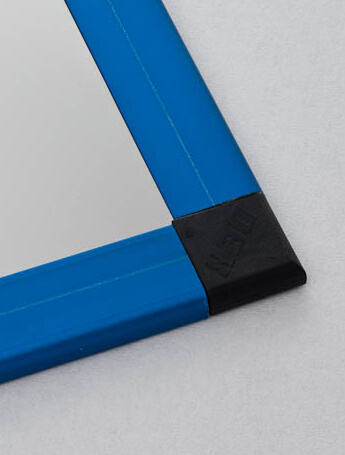

The patented tensioning system is a four-sided spring-loaded system for SMD stencils in a blue frame. It is available in standard sizes of 23“x23“and 29“x 23“. In addition the tensioning system is expandable with adapter set to outside dimensions of 29" x 29" (736 x 736mm). SMD stencils in the VectorGuard® tensioning system are only available in limited material thicknesses (µm)
80, 100, 120, 130, 150,180, 200, 250.
material thicknesses (µm)
80, 100, 120, 130, 150,180, 200, 250.
What is the size of the pure metal sheet?
The pure metal sheet of the standard size 584 x 584mm is 555,5 x 555,5 mm and is therefore the maximum available working surface. The pure metal sheet of the standard size 736 x 736 mm is 708 x 555,5 mm.
We have an extensive stock of metal sheets available, to delivery stencils within 3 working days. In addition we offer fast deliveries in 6-hours and 24-hours services.
Are step stencils available in VectorGuard® - Tension System?
Yes, there is no restriction. It is possible to deliver step-up and step-down stencils in VectorGuard®-tension systems, comparable to stencils in fixed frames.
How can we store stencils in VectorGuard® - Tension systems?
We offer storage bags for stencils in tensioning systems for dust-free storage and to protect the stencils against mechanical influence.
How can we distinguish stencils for RoHS Directive regulations?

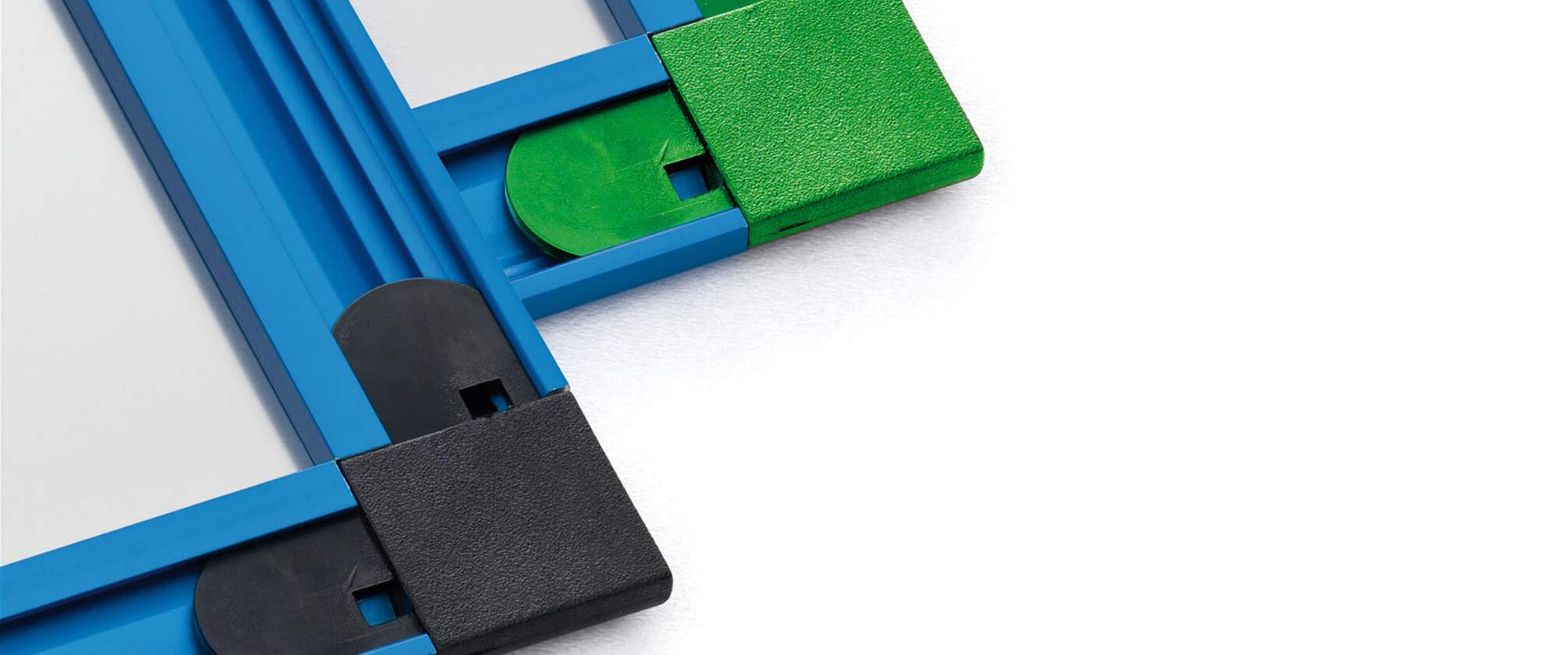

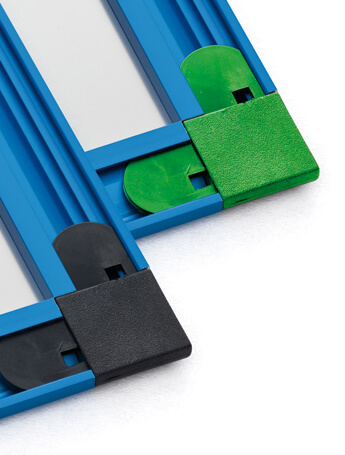

We offer green corner tabs for compliance with RoHS directive or unique product identification.
